首頁進口晶振 NDK晶振4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器

4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器

編號：46000951
頻率：25MHz
尺寸：3.2x2.5mm

4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,15ppm,3225mm諧振器，日本進口NDK晶振，型號NX3225SA，編碼為：NX3225SA-25.000M-STD-CSR-3，是一款小體積晶振尺寸3.22.50.55mm四腳貼片晶振，無源晶振，石英晶體諧振器，...

分享到

4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器，日本進口NDK晶振，型號NX3225SA，編碼為：NX3225SA-25.000M-STD-CSR-3，是一款小體積晶振尺寸3.2×2.5×0.55mm四腳貼片晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，工作溫度范圍：-40℃至+125℃，在極端惡劣的環境條件下也能具有穩定的啟動特性，優異的抗環境性能，如耐熱、振動和抗沖擊性，回流溫度分布（可用于無鉛焊接），符合AEC-Q200，緊湊的表面安裝晶體單元，特別適用于汽車電子產品，汽車電子控制板，汽車動力轉向控制器，汽車遙控器，汽車音影晶振，汽車胎壓檢測，通訊設備，無線網絡，藍牙模塊，醫療設備，平板電腦等應用。

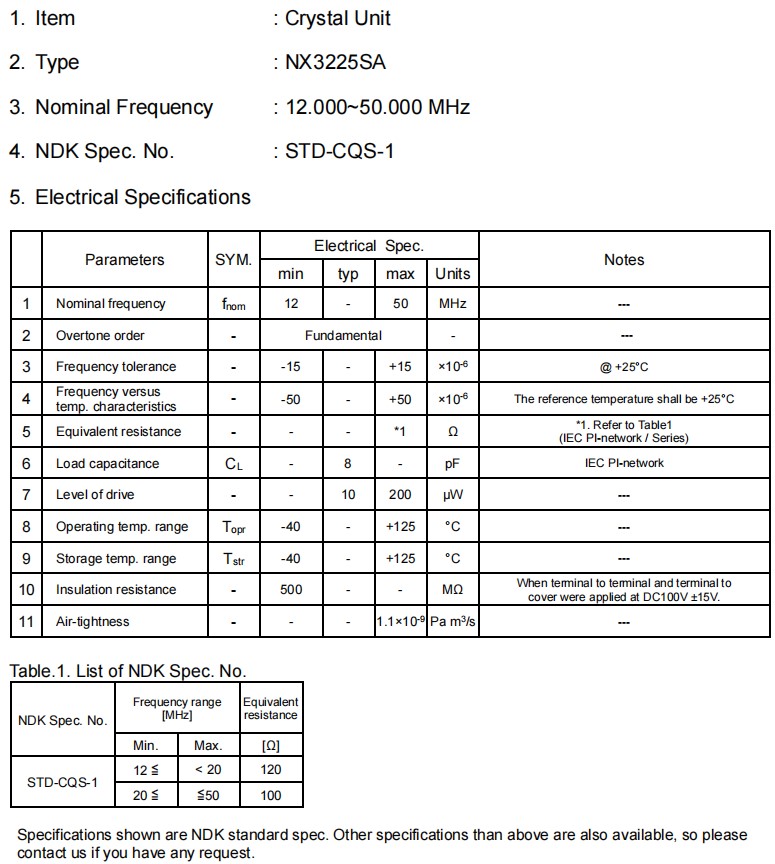

4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器，參數表

Item	Model	NX3225SA
Nominal Frequency		12 to 64 MHz	16 to 54 MHz	40 to 150 MHz
Overtone Order		Fundamental	Fundamental	3rd overtone
Frequency Tolerance (25 ±3 °C)		±15 × 10−6	±10 × 10−6	±20 × 10−6
Frequency versus Temperature Characteristics (with reference to +25 °C)		±25 × 10−6	±10 × 10−6	±25 × 10−6
Operating Temperature Range		−40 to +85 °C	−20 to +75 °C	−40 to +85 °C
Storage Temperature Range		−40 to +85 °C
Equivalent Series Resistance		Refer to *1	Refer to *2	Refer to *3
Level of Drive		10 μW (Max. 200 μW)
Load Capacitance		8 pF	10 pF	Series resonance
Specifications Number		STD-CSR-6	STD-CSQ-1	STD-CSR-7

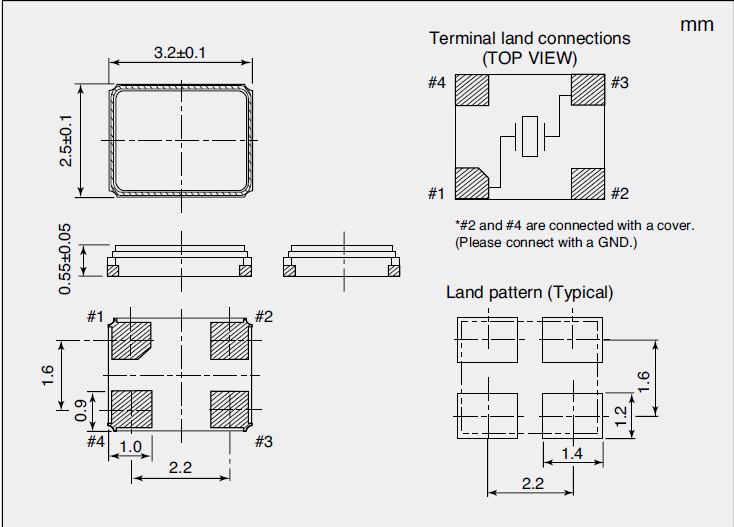

4-SMD,NX3225SA-25.000M-STD-CSR-3,25MHz,8pF,±15ppm,3225mm諧振器 尺寸圖

貼片石英晶振	品牌	型號	頻率	頻率穩定度	包裝/封裝
NX3225SA-24.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	24MHz	±15ppm	4-SMD, No Lead
NX3225SA-16.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	16MHz	±15ppm	4-SMD, No Lead
NX3225SA-32.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	32MHz	±15ppm	4-SMD, No Lead
NX3225SA-26.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	26MHz	±15ppm	4-SMD, No Lead
NX3225SA-20.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	20MHz	±15ppm	4-SMD, No Lead
NX3225SA-14.31818MHZ-STD-CSR-1	NDK晶振	NX3225SA	14.31818MHz	±15ppm	4-SMD, No Lead
NX3225SA-24.576MHZ-STD-CSR-1	NDK晶振	NX3225SA	24.576MHz	±15ppm	4-SMD, No Lead
NX3225SA-27.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	27MHz	±15ppm	4-SMD, No Lead
NX3225SA-32M-EXS00A-02994	NDK晶振	NX3225SA	32MHz	±15ppm	4-SMD, No Lead
NX3225SA-25.000M-STD-CSR-3	NDK晶振	NX3225SA	25MHz	±15ppm	4-SMD, No Lead
NX3225SA-20.000M-STD-CSR-3	NDK晶振	NX3225SA	20MHz	±15ppm	4-SMD, No Lead
NX3225SA-26.000M-STD-CSQ-1	NDK晶振	NX3225SA	26MHz	±10ppm	4-SMD, No Lead
NX3225SA-30.000M-STD-CSR-3	NDK晶振	NX3225SA	30MHz	±15ppm	4-SMD, No Lead
NX3225SA-32MHZ-EXS00A-CS02368	NDK晶振	NX3225SA	32MHz	±16ppm	4-SMD, No Lead
NX3225SA-25.000M-STD-CRS-2	NDK晶振	NX3225SA	25MHz	±50ppm	4-SMD, No Lead
NX3225SA-27M-STD-CRS-2	NDK晶振	NX3225SA	27MHz	±50ppm	4-SMD, No Lead
NX3225SA-12MHZ-STD-CSR-6	NDK晶振	NX3225SA	12MHz	±25ppm	4-SMD, No Lead
NX3225SA-16MHZ-STD-CSR-6	NDK晶振	NX3225SA	16MHz	±25ppm	4-SMD, No Lead
NX3225SA-26.000000MHZ-G4	NDK晶振	NX3225SA	26MHz	±10ppm	4-SMD, No Lead
NX3225SA-26.000000MHZ-B1	NDK晶振	NX3225SA	26MHz	±10ppm	4-SMD, No Lead
NX3225SA-16.000000MHZ-T1	NDK晶振	NX3225SA	16MHz	±10ppm	4-SMD, No Lead
NX3225SA-26.000000MHZ-G2	NDK晶振	NX3225SA	26MHz	±11ppm	4-SMD, No Lead
NX3225SA-16.000000MHZ-B3	NDK晶振	NX3225SA	16MHz	±15ppm	4-SMD, No Lead
NX3225SA-26.000000MHZ-G3	NDK晶振	NX3225SA	26MHz	±10ppm	4-SMD, No Lead
NX3225SA-39.000000MHZ-B4	NDK晶振	NX3225SA	39MHz	±10ppm	4-SMD, No Lead
NX3225SA-20.000M-STD-CRS-2	NDK晶振	NX3225SA	20MHz	±50ppm	4-SMD, No Lead
NX3225SA-16.000M-STD-CRS-2	NDK晶振	NX3225SA	16MHz	±50ppm	4-SMD, No Lead
NX3225SA-26.000M-STD-CSR-3	NDK晶振	NX3225SA	26MHz	±15ppm	4-SMD, No Lead
NX3225SA-40.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	40MHz	±15ppm	4-SMD, No Lead
NX3225SA-20.000000MHZ-B2	NDK晶振	NX3225SA	20MHz	±15ppm	4-SMD, No Lead
NX3225SA-114.285MHZ-EXS00A-CS06528	NDK晶振	NX3225SA	114.285MHz	±20ppm	4-SMD, No Lead
NX3225SA-27.12M-STD-CSR-3	NDK晶振	NX3225SA	27.12MHz	±15ppm	4-SMD, No Lead
NX3225SA-12.000M-STD-CRS-2	NDK晶振	NX3225SA	12MHz	±50ppm	4-SMD, No Lead
NX3225SA-12.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	12MHz	±15ppm	4-SMD, No Lead
NX3225SA-13.56M-STD-CSR-3	NDK晶振	NX3225SA	13.56MHz	±15ppm	4-SMD, No Lead
NX3225SA-40M-EXS00A-CS03880	石英晶振	NX3225SA	40MHz	±17ppm	4-SMD, No Lead
NX3225SA-25.000M-STD-CSR-6	NDK晶振	NX3225SA	25MHz	±25ppm	4-SMD, No Lead
NX3225SA-12MHZ-STD-CSR-3	NDK晶振	NX3225SA	12MHz	±15ppm	4-SMD, No Lead
NX3225SA-24.000M-STD-CSR-3	NDK晶振	NX3225SA	24MHz	±15ppm	4-SMD, No Lead
NX3225SA-22.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	22MHz	±15ppm	4-SMD, No Lead
NX3225SA-25.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	25MHz	±15ppm	4-SMD, No Lead
NX3225SA-12.288M-STD-CSR-3	NDK晶振	NX3225SA	12.288MHz	±15ppm	4-SMD, No Lead
NX3225SA-13M-STD-CSR-6	NDK晶振	NX3225SA	13MHz	±25ppm	4-SMD, No Lead
NX3225SA-12.288M-STD-CRS-2	NDK晶振	NX3225SA	12.288MHz	±50ppm	4-SMD, No Lead
NX3225SA-44.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	44MHz	±15ppm	4-SMD, No Lead
NX3225SA-16MHZ-STD-CSR-3	NDK晶振	NX3225SA	16MHz	±15ppm	4-SMD, No Lead
NX3225SA-40.000M-STD-CRS-2	NDK晶振	NX3225SA	40MHz	±50ppm	4-SMD, No Lead
NX3225DA-16.000MHZ-EXS00A-03311	NDK晶振	NX3225SA	16MHz	-	4-SMD, No Lead
