- 編號：10175564
- 頻率：16.9344MHz
- 尺寸：3.2x2.5mm
NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm
NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,30ppm，日本進口晶振，NDK晶振型號NX3225GA，編碼為：NX3225GA-16.9344M-STD-CRG-2，是一款小體積晶振尺寸3.2x2.5x0.75mm陶瓷封裝，四腳貼片晶振，石...
.jpg)
NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm，日本進口晶振，NDK晶振型號NX3225GA，編碼為：NX3225GA-16.9344M-STD-CRG-2，是一款小體積晶振尺寸3.2x2.5x0.75mm陶瓷封裝，四腳貼片晶振，石英晶體諧振器，無源晶振，石英晶振，無鉛環保晶振，頻率為16.9344MHz，工作溫度范圍：-40℃至+150℃。在極端惡劣的環境條件下也能具有穩定的啟動特性，優異的抗環境性能，如耐熱、振動和抗沖擊性，回流溫度分布（可用于無鉛焊接），符合AEC-Q200，超小型，輕薄型，特別適用于：汽車電子晶振，車載控制器，汽車音影晶振，汽車氛圍燈控制器，汽車充電樁，汽車電子控制板，汽車大燈恒溫器，無線網絡，藍牙模塊，移動通訊設備，數碼電子等應用。
.gif)

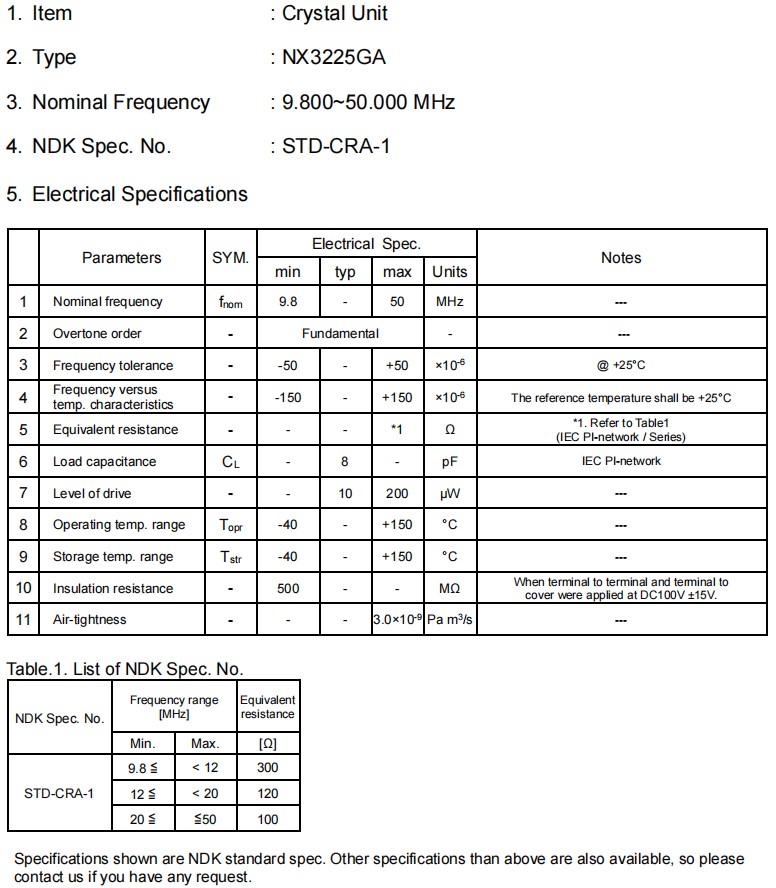

NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm 參數表
| 項目 | NX3225GA |
| 標稱頻率 | 9.840 to 50 MHz |
| 序曲順序 | Fundamental |
| 頻率公差（25±3°C） | ±20 × 10−6 |
| 頻率與溫度特性（參考+25°C） | ±30 × 10−6 |
| 工作溫度范圍 | −40 to +85 °C |
| 儲存溫度范圍 | −40 to +85 °C |
| 等效串聯電阻 | Refer to *1 |
| 驅動級別 | 10 μW (Max. 200 μW) |
| 負載電容 | 8pF |
| 規格編號 | STD-CRG-2 |
.gif)

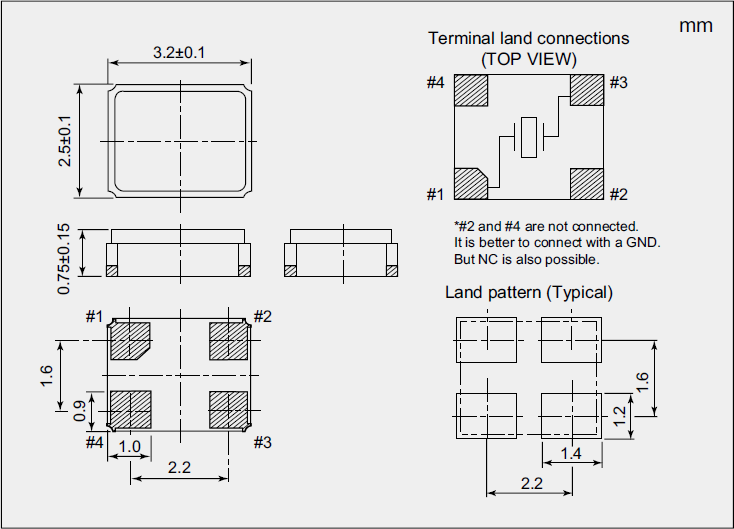

NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm 尺寸圖
NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm
NX3225GA晶振特點：
緊湊的表面安裝晶體單元，適用于汽車應用
緊湊和薄(Typ：3.2×2.5×0.75mm)
即使在極端惡劣的環境條件下也能具有穩定的啟動特性
優異的抗環境性能，如耐熱、振動和抗沖擊性
回流溫度分布（可用于無鉛焊接）
符合AEC-Q200標準
| 貼片石英晶振 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 包裝/封裝 |
| NX3225GA-26.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 26MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-26MHZ-TI | NDK晶振 | NX3225GA | 26MHz | ±40ppm | 4-SMD, No Lead |
| NX3225GA-16.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 16MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 27MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-20.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 20MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-24.576M-STD-CRG-2 | NDK晶振 | NX3225GA | 24.576MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-26.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 26MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.31818M-STD-CRG-2 | NDK晶振 | NX3225GA | 14.31818MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-32M-EXS00A-CG02611 | NDK晶振 | NX3225GA | 32MHz | ±20ppm | 4-SMD, No Lead |
| NX3225GA-20.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 20MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.7456M-STD-CRG-1 | NDK晶振 | NX3225GA | 14.7456MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27M-STD-CRG-2 | NDK晶振 | NX3225GA | 27MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-20MHZ-STD-CRA-1 | NDK晶振 | NX3225GA | 20MHz | ±150ppm | 4-SMD, No Lead |
| NX3225GA-19.2M-STD-CRG-2 | NDK晶振 | NX3225GA | 19.2MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-16.9344M-STD-CRG-2 | NDK晶振 | NX3225GA | 16.9344MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-10.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 10MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12MHZ- STD-CRG-2 | NDK晶振 | NX3225GA | 12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12.000M-STD-CRA-1 | NDK晶振 | NX3225GA | 12MHz | ±150ppm | 4-SMD, No Lead |
| NX3225GA-12.288M-STD-CRG-2 | NDK晶振 | NX3225GA | 12.288MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-13.56M-STD-CRG-2 | NDK晶振 | NX3225GA | 13.56MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.7456M-STD-CRG-2 | NDK晶振 | NX3225GA | 14.7456MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27.12M-STD-CRG-2 | NDK晶振 | NX3225GA | 27.12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-25.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 25MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-25.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 25MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-16.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 16MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12MHZ- STD-CRG-1 | NDK晶振 | NX3225GA | 12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.31818M-STD-CRG-1 | NDK晶振 | NX3225GA | 14.31818MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-10.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 10MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-30.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 30MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-30.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 30MHz | ±30ppm | 4-SMD, No Lead |
