首頁歐美晶振 FOX晶振FOX汽車晶體,領先全球的電子手剎晶振,FC3BABCVI52.0晶振

FOX汽車晶體,領先全球的電子手剎晶振,FC3BABCVI52.0晶振

編號：94825772
頻率：52MHz
尺寸：3225mm

FOX汽車晶體,領先全球的電子手剎晶振,FC3BABCVI52.0晶振，美國福克斯晶振公司，石英晶振，貼片晶振，無源晶振，高精密石英晶振，進口晶振，歐美晶振，FOX晶振，高品質晶振，低損耗晶振，歐美晶振，遙遙領先晶振，室外...

分享到

FOX汽車晶體,領先全球的電子手剎晶振,FC3BABCVI52.0晶振，美國福克斯晶振公司，石英晶振，貼片晶振，無源晶振，高精密石英晶振，進口晶振，歐美晶振，FOX晶振，高品質晶振，低損耗晶振，歐美晶振，遙遙領先晶振，室外6G基站晶振，汽車電子晶振，汽車輔助駕駛晶振，高精度晶振，3225晶振，小體積晶振，C3BA晶振。FOX晶體內部石英晶片均采用了全自動壓電石英晶片清洗技術，采用高壓噴淋清洗，兆聲振動的原理，一個全自動、清洗過程由PLC控制，由傳輸裝置、噴淋清洗段、噴淋漂洗段、風力吹水段等，操作自動化程度高，除上下工件需要人工外，其余全部由設備自動完成。根據需要，對速度，溫度，時間等參數進行調整，使之最大限度的滿足工藝需要。能最大限度除去晶片污染物，并防止人工污染。

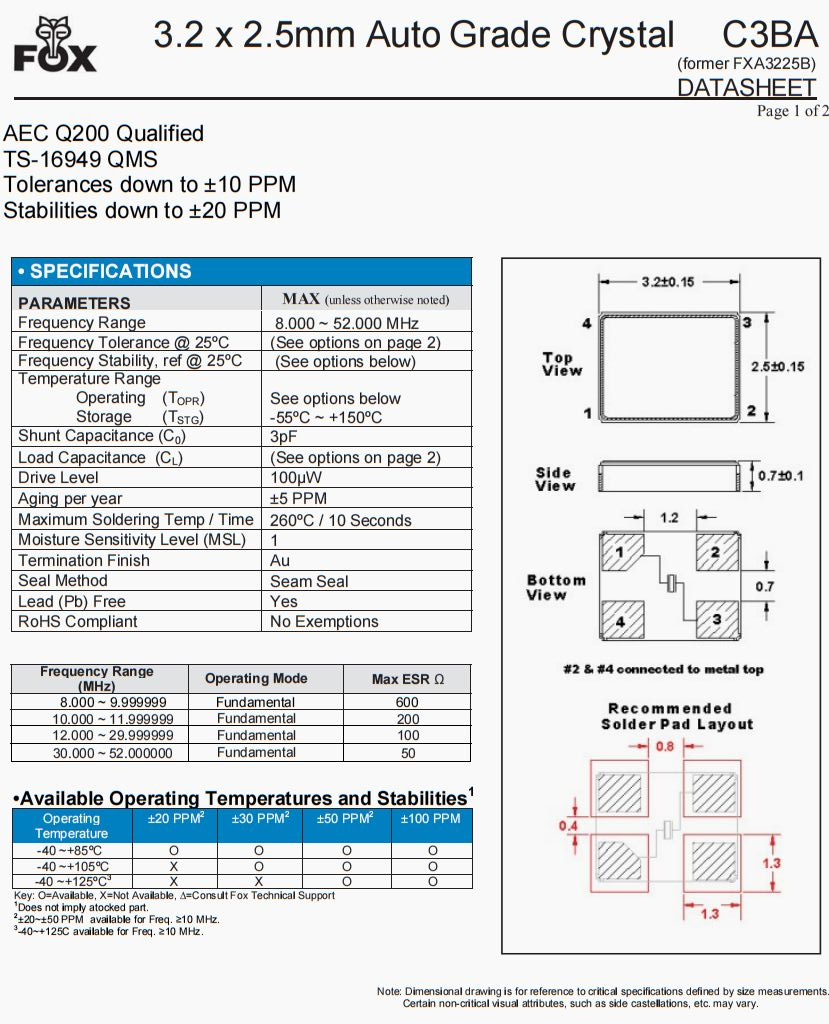

FOX汽車晶體,領先全球的電子手剎晶振,FC3BABCVI52.0晶振

參數	MAX (unless otherwise noted)
頻率范圍	8.000 ~ 52.000 MHz
頻率容差	(See options on page 2)
頻率穩定度	(See options below)
工作溫度范圍	See options below
儲存溫度范圍	-55ºC ~ +150ºC
分流電容	3pF
負載電容	(See options on page 2)
驅動電平	100µW
老化	±5 PPM
最大焊接溫度/時間	260ºC / 10 Seconds
濕度敏感性水平	1
終止完成	Au
密封方式	Seam Seal
無鉛	Yes
符合RoHS	No Exemptions

FOX汽車晶體,領先全球的電子手剎晶振,FC3BABCVI52.0晶振

FOX原廠編碼	生產商	型號	頻率	頻率穩定度	頻率容差
FC4SDCBMF10.0-T1	Fox晶振	HC49SDLF	10 MHz	±50ppm	±30ppm
FC4SDCBMF8.0-T1	Fox晶振	HC49SDLF	8 MHz	±50ppm	±30ppm
FC4SDCBMF3.6864-T1	Fox晶振	HC49SDLF	3.6864 MHz	±50ppm	±30ppm
FKFSREIHM0.032768-T3	Fox晶振	FSRLF	32.768 kHz	-	±20ppm
FC4STCBMF20.0	Fox晶振	HC49SLF	20 MHz	±50ppm	±30ppm
FK135EIHM0.032768-T3	Fox晶振	K135	32.768 kHz	-	±20ppm
FC5BQCCMC12.0-T1	Fox晶振	C5BQ	12 MHz	±30ppm	±30ppm
FC5BQCCMM25.0-T1	Fox晶振	C5BQ	25 MHz	±30ppm	±30ppm
FC5BQCCMM12.0-T1	Fox晶振	C5BQ	12 MHz	±50ppm	±30ppm
FC7BSCCMM8.0-T1	Fox晶振	C7BS	8 MHz	±30ppm	±30ppm
FC7BSCCMM7.3728-T1	Fox晶振	C7BS	7.3728 MHz	±30ppm	±30ppm
FKFSXEIHM0.032768-T3	Fox晶振	FSXLF	32.768 kHz	-	±20ppm
FKFSREIBM0.032768-T3	Fox晶振	FSRLF	32.768 kHz	-	±20ppm
FC8AQCCMC3.6864-T1	Fox晶振	FC8AQ	3.6864 MHz	±30ppm	±30ppm
FC8AQCCMC4.0-T1	Fox晶振	FC8AQ	4 MHz	±30ppm	±30ppm
FC4SDCBMF11.0592-T1	Fox晶振	HC49SDLF	11.0592 MHz	±50ppm	±30ppm
FC4SDCBMF25.0-T1	Fox晶振	HC49SDLF	25 MHz	±50ppm	±30ppm
FC4SDCBMF16.0-T1	Fox晶振	HC49SDLF	16 MHz	±50ppm	±30ppm
FC4SDCBMF12.0-T1	Fox晶振	HC49SDLF	12 MHz	±50ppm	±30ppm
FC4SDCBMF24.0-T1	Fox晶振	HC49SDLF	24 MHz	±50ppm	±30ppm
FC4SDCBMM25.0-T1	Fox晶振	HC49SDLF	25 MHz	±50ppm	±30ppm
FC4SDCBMF14.7456-T1	Fox晶振	HC49SDLF	14.7456 MHz	±50ppm	±30ppm
FC4SDCBMM8.0-T1	Fox晶振	HC49SDLF	8 MHz	±50ppm	±30ppm
FC4SDCBMF7.3728-T1	Fox晶振	HC49SDLF	7.3728 MHz	±50ppm	±30ppm
FC4SDCBMF6.0-T1	Fox晶振	HC49SDLF	6 MHz	±50ppm	±30ppm
FC4SDCBMF4.0-T1	Fox晶振	HC49SDLF	4 MHz	±50ppm	±30ppm
FC3BQBBME12.0-T3	Fox晶振	FQ3225B	12 MHz	±50ppm	±50ppm
FC3BQBBMM25.0-T3	Fox晶振	FC3BQ	25 MHz	±50ppm	±50ppm
FKT38EIHD0.032768	Fox晶振	NC38LF	32.768 kHz	-	±20ppm
FC4STCBMF10.0	Fox晶振	HC49SLF	10 MHz	±50ppm	±30ppm
FC4STCBMF25.0	Fox晶振	HC49SLF	25 MHz	±50ppm	±30ppm
FC4STCBMF16.0	Fox晶振	HC49SLF	16 MHz	±50ppm	±30ppm
FC4STCBMF12.0	Fox晶振	HC49SLF	12 MHz	±50ppm	±30ppm
FC4STCBMF11.0592	Fox晶振	HC49SLF	11.0592 MHz	±50ppm	±30ppm
FC4STCBMF8.0	Fox晶振	HC49SLF	8 MHz	±50ppm	±30ppm
FC4STCBMF7.3728	Fox晶振	HC49SLF	7.3728 MHz	±50ppm	±30ppm
FC4STCBLF3.579545	Fox晶振	HC49SLF	3.579545 MHz	±50ppm	±30ppm
FC4STCBMF4.0	Fox晶振	HC49SLF	4 MHz	±50ppm	±30ppm
FC4STCBMF3.6864	Fox晶振	HC49SLF	3.6864 MHz	±50ppm	±30ppm
FKT26EIHD0.032768	Fox晶振	NC26LF	32.768 kHz	-	±20ppm
FKT38EIHQ0.032768	Fox晶振	NC38LF	32.768 kHz	-	±20ppm
FC5BQCCMC25.0-T1	Fox晶振	C5BQ	25 MHz	±30ppm	±30ppm
FC5BQCCMC24.0-T1	Fox晶振	C5BQ	24 MHz	±30ppm	±30ppm
FC5BQCCMC20.0-T1	Fox晶振	C5BQ	20 MHz	±30ppm	±30ppm
FC5BQCCMC16.0-T1	Fox晶振	C5BQ	16 MHz	±30ppm	±30ppm
FC7BSCCMC8.0-T1	Fox晶振	C7BS	8 MHz	±30ppm	±30ppm
FC7BSCCMM6.0-T1	Fox晶振	C7BS	6 MHz	±30ppm	±30ppm
FC7BSCCMC7.3728-T1	Fox晶振	C7BS	7.3728 MHz	±30ppm	±30ppm
FC8AQCCMC6.0-T1	Fox晶振	FC8AQ	6 MHz	±30ppm	±30ppm
FC4SDCBMF12.288-T1	Fox晶振	HC49SDLF	12.288 MHz	±50ppm	±30ppm
FC4SDCBMM16.0-T1	Fox晶振	HC49SDLF	16 MHz	±50ppm	±30ppm
FC4SDCBMF18.432-T1	Fox晶振	HC49SDLF	18.432 MHz	±50ppm	±30ppm
FC4SDCBLF3.579545-T1	Fox晶振	HC49SDLF	3.579545 MHz	±50ppm	±30ppm
FC4SDCBMM4.0-T1	Fox晶振	HC49SDLF	4 MHz	±50ppm	±30ppm
FC2BSBBMM16.0-T3	Fox晶振	FX252B	16 MHz	±50ppm	±50ppm
FC4STCBMF18.432	Fox晶振	HC49SLF	18.432 MHz	±50ppm	±30ppm
FC4STCBMF14.7456	Fox晶振	HC49SLF	14.7456 MHz	±50ppm	±30ppm
FKT26EIHQ0.032768	Fox晶振	NC26LF	32.768 kHz	-	±20ppm
