首頁歐美晶振 ConnorWinfield晶振CSB11-012.0M,LVCMOS石英振蕩器,6G無線網絡晶振

CSB11-012.0M,LVCMOS石英振蕩器,6G無線網絡晶振

編號：98616698
頻率：12MHz
尺寸：7.0×5.0mm

ConnorWinfield晶振,美國進口晶振,CSB1X有源晶振,CSB11-012.0M晶振,TCXO溫補晶振,7050mm晶振,LVCMOS石英振蕩器,頻率12MHz,電壓3.3V,工作溫度-10~65°C,頻率穩定性0.2ppm,高穩定性晶振,無鉛環保晶振,6G無線網絡晶振,移...

分享到

CSB11-012.0M,LVCMOS石英振蕩器,6G無線網絡晶振,ConnorWinfield晶振,美國進口晶振,CSB1X

有源晶振,CSB11-012.0M晶振,TCXO溫補晶振,7050mm晶振,LVCMOS石英振蕩器,頻率12MHz,電壓3.3V,工作溫度-10~65°C,頻率穩定性0.2ppm,高穩定性晶振,無鉛環保晶振,6G無線網絡晶振,移動設備晶振,通信設備晶振,智能影音系統晶振.
CSB11-012.0M,LVCMOS石英振蕩器,6G無線網絡晶振特點：
•3.3V工作電壓
•頻率穩定性:±0.20 ppm
•平均斜率=±0.7 ppb/min
•可用溫度范圍: 一級-40至55°C；二級-20至55°C；選項-10至65°C.
•LVCMOS或削波正弦波輸出
•陶瓷表貼封裝
•符合RoHS標準/無鉛
•帶卷包裝

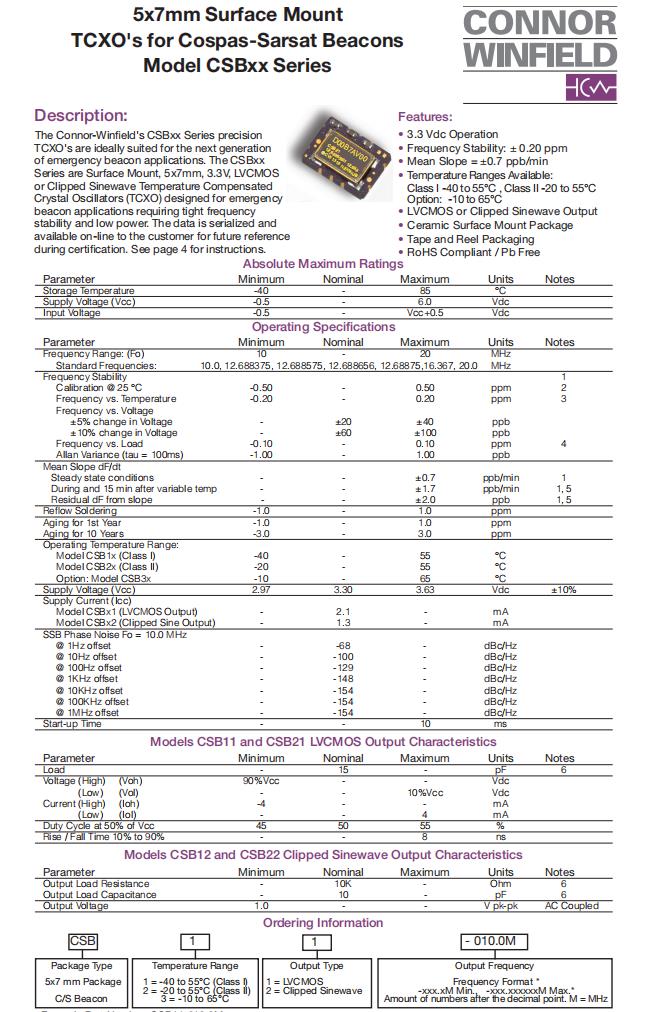

CSB11-012.0M,LVCMOS石英振蕩器,6G無線網絡晶振 參數表

項目	規格說明
額定頻率	12MHz
頻率公差 @ 25ºC	±0.50 ppm
頻率穩定性	±0.20ppm
電源電壓變化(Vcc±5%)	±40 ppb
負載系數(±5%）	±0.10 ppm
老化第一年	±1 ppm
電源電壓(Vcc)	3.3V
電源電流(Icc)	2.1mA Max
周期抖動	5ps rms Max
積分相位抖動(帶寬=12 Khz至20 MHz)	1ps rms Max
20MHz時的SSB相位噪聲： @ 1Hz offset @ 10Hz offset @ 100Hz offset @ 1KHz offset @ 10KHz offset @ 100KHz offset @ 1MHz offset	-68dBc/Hz -100dBc/Hz -129dBc/Hz -148dBc/Hz -154dBc/Hz -154dBc/Hz -154dBc/Hz
輸出負載電阻	10K Ohm
工作溫度	-10~+65°C
負載	15pF
啟動時間	10ms max.
50% Vcc時的占空比	45%min 55%max
上升/下降時間10%至90%	8ns max
電壓（高）（VOh）（低）（VOl）	90%Vcc Vdc Min 10%Vcc Vdc max
儲存溫度	-40~85°C

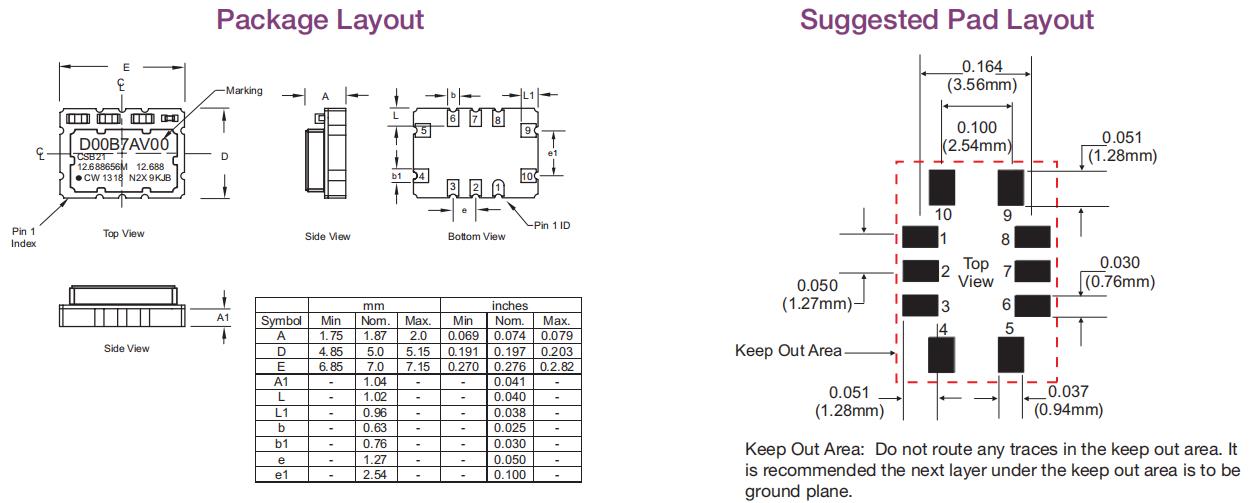

CSB11-012.0M,LVCMOS石英振蕩器,6G無線網絡晶振尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-018-114.285M	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
CS-023-114.285M	Connor-Winfield	CS-023	114.285MHz	±20ppm	±20ppm	18pF	80 Ohm	-40°C ~ 85°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-010.0M	Connor-Winfield	XL-1C	10MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-012.0M	Connor-Winfield	XL-1C	12MHz	±50ppm	±50ppm	16pF	60 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-020.0M	Connor-Winfield	XL-1C	20MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-016.0M	Connor-Winfield	XL-1C	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-012.0M	Connor-Winfield	XM-1	12MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-016.0M	Connor-Winfield	XM-1	16MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
XM-1-010.0M	Connor-Winfield	XM-1	10MHz	±50ppm	±50ppm	16pF	50 Ohm	-10°C ~ 60°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-034-040.0M	Connor-Winfield	CS-034	40MHz	±50ppm	±30ppm	10pF	25 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-043-048.0M	Connor-Winfield	CS-043	48MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
CS-044-054.0M	Connor-Winfield	CS-044	54MHz	±25ppm	±15ppm	8pF	20 Ohm	-40°C ~ 85°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XL-1C-018.432M	Connor-Winfield	XL-1C	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
XM-1-018.432M	Connor-Winfield	XM-1	18.432MHz	±50ppm	±50ppm	16pF	40 Ohm	-10°C ~ 60°C
CS-018-114.285MHZ	Connor-Winfield	CS-018	114.285MHz	±100ppm	±100ppm	18pF	80 Ohm	-40°C ~ 85°C
